72 INCHES HOOP SIZE

MODEL

ORBITAL STRETCH WRAPPER

RTR1000 ROTORAP

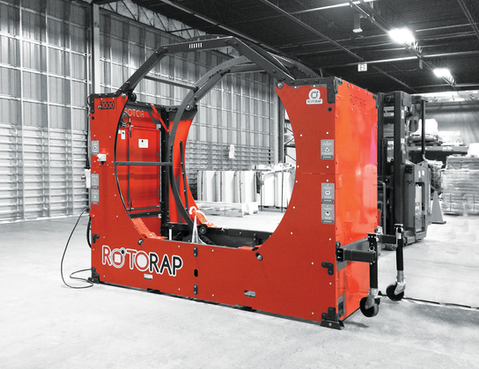

The RTR1000 orbital stretch wrapper is dedicated to the pallet wrapping of almost any shapes. Double hoop propelled by an electric 110V motor and gearbox. Maintenance-free, it will endure and suffer the most demanding situations for years.

RTR1000 b DESSIN.png

RTR1000 INDUSTRIAL WRAPPER

STANDARD EQUIPMENTS :

1 ELECTRIC MOTOR 1HP

1 CONTROL PANEL - 110 VOLT - 15 AMP

1 30'' STRETCHERS

1 REMOTE WITH 25' WIRE

3 EMERGENCY STOPS

2 SERVICE DOORS

4 LIFTING HOOKS

OPTIONAL EQUIPMENTS :

20'' STRETCHER

SECURITY FENCES

CUT & HOLD SYSTEM

REMOTE SENSING

PALLET GUIDES

PNEUMATIC VERTICAL MASTS

CONVOYERS

rtr 1000

ORBITAL stretch WRAPPER

  • 22 SECONDS AVERAGE PER WRAP

  • ONLY  110 VOLTS - 15 AMPS

  • HAND-HELD REMOTE AT FORKLIFT'S POSITION

  • 72'' HOOP SIZE   (4' x 4' regular pallets)

  • 30'' PLASTIC DISPENSER

  • LARGE LOAD

  • INDOOR OR OUTDOOR  -10C TO 40C     10F TO 100F

  • CSA  /  cULus APPROVED

  • 1 SIDE SERVICE DOORS

  • CLEAR OR WHITE STRETCH WRAP

  • PRE-STRETCHING ON TENSIONER

  • 2 TENSIONNERS OPTIONS

CARACTERISTICS & SPECS

  • AVERAGE OF 22 SECONDES PER WRAP

  • ONLY 110 VOLTS - 15 AMPS

  • 25' WIRED REMOTE

  • 74'' HOOP   ( 4' x 4' PALLETS )

  •  MADE FOR 30'' WRAP (20'' & 10'' WITH OPTIONAL DISPENSER)

  • PRE-STRETCHING

  • 3 ARRÊTS D'URGENCE

  • cULUs APPROVED ELECTRICAL COMPONENTS

  • SERVICE DOORS

  • ALL "NUTS AND BOLTS"

  • ADJUSTABLE TENSION ON STRETCHERS

  • ALMOST MAINTENANCE-FREE

even faster

EASY OPERATIONS

REMOTE

Size :

Hoop size :

Maximum pallet size :

Plastic width :

Remote :

Drived :

Lenght of one(1) roll :

RPM :

Volts :

Amps :

Operating Temp (min/max) :

48''L x 108"L x 117''H

72''

52''L x 52''H

30''

yes

Gear to gear

5200 '

12

110

15

32F  to  100F

Average manual wrapping time :

7 minutes

Average column wrapping time :

3,5 minutes

Average ROTORAP1000 wrapping time :

0,3 minutes

MAINTENANCE

free

with the rental program, there is no hassle, it's maintenance free.

used by MANY

we have numerous comparable business cases capable of helping you.

easy to manage

the rental program is a simple programmed wire transfer.

operations

faster operations. workers and forlklift are now used at their full value.
